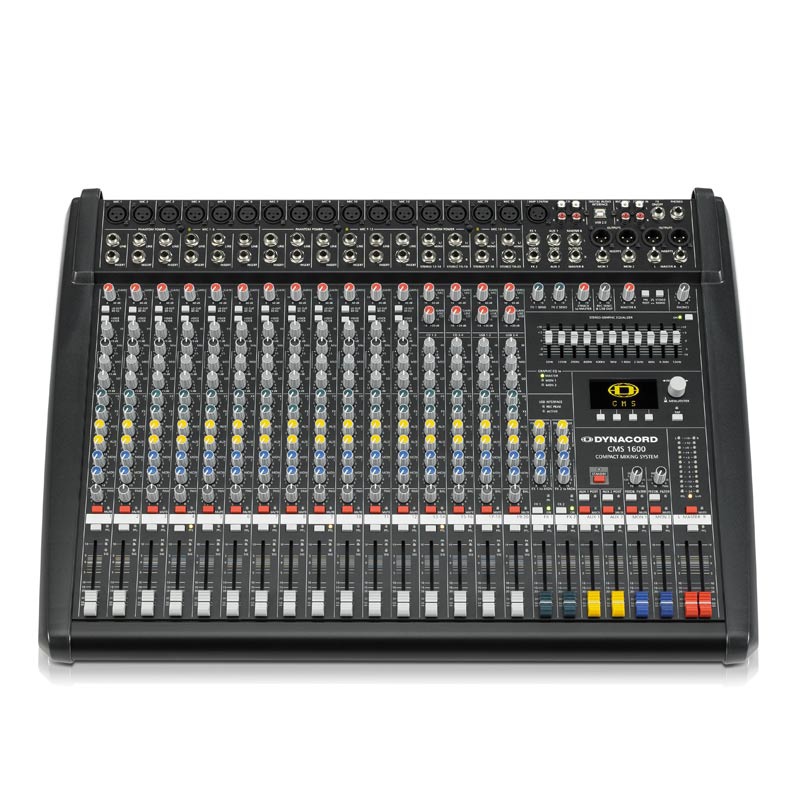

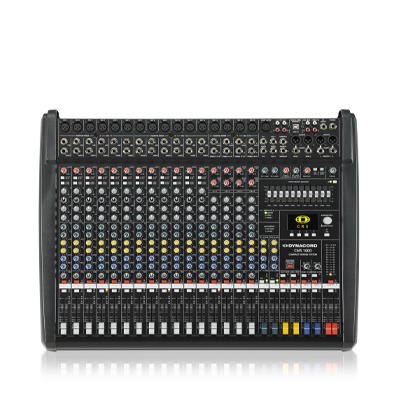

میکسر صدا CMS 1600-3 دایناکورد

12 + 4

12 × MIC/Line- Mono

4 × MIC/Line- Stereo

15Hz to 70kHz

< Fader and FX/AUX/MON-Send attenuation: > 85dB; Channel to Channel: < -80dB; dB

2 Pre, 2 Post, 2 Pre/Post switchable

128 x 64 pixels, OLED

Type: Dual stereo 24/48-bit multi effects processors; Effects presets: 100 Factory + 20 User, Tap-Delay; Remote control: Footswitch, MIDI;

LO-CUT, mono inputs: f=80Hz, 18dB/oct; VOICE FILTER, mono inputs: switchable; FEEDBACK FILTER, MON ½: 70Hz to 7kHz, Notch, -9dB

MIC: 2㏀; Insert Return: > 3.3㏀; 2Track Return & CD In: 10㏀; All other inputs: > 15㏀

MIC: -74dBu (155μV); LINE (Mono): -54dBu (1.55mV); LINE (Stereo): -34dBu (15.5mV); CD (Stereo): -34dBu (15.5mV)

MIC Inputs: +21dBu; Mono Line inputs: +41dBu; Stereo Line inputs: +30dBu; All other inputs: +22dBu; All other outputs: +22dBudB

+10 to +60dB

5-pin DIN connector, In / Out

Phones: 47Ω; All other outputs: 75Ω

48VDC

<0.005%

100V to 240VAC, 50Hz to 60Hz

Without Lamp: 50W; With Lamp: 55W

+5 °C…+40 °C

155 x 663.5 x 498.5 mm

12kg
